- 產品詳情
PDI在廣泛的頻率范圍內提供各種單片和離散晶體濾波器，并且具有任何商業(yè)或軍用級規(guī)格的最高質量。PDI的晶體濾波器有各種標準包裝，或根據客戶的規(guī)格制造。

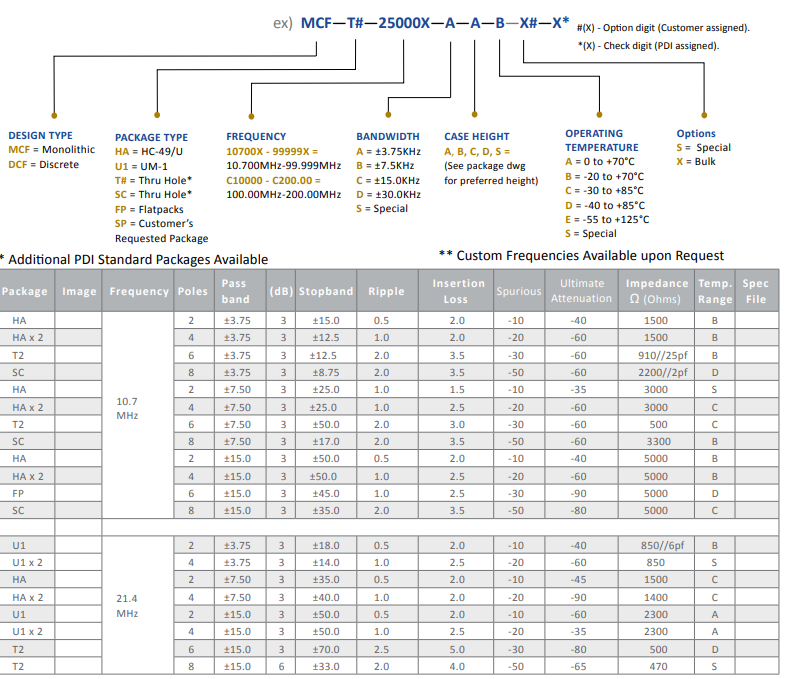

| 封裝 | 頻率范圍 | Thru-Hole/SMD | Discrete/Monolithic | 工作溫度 | Poles | Lead Free |
|---|---|---|---|---|---|---|
| FP | 10.7MHz to 200MHz | Both | Both | -55 to +125°C | 6 | Yes |
| HA | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 2 | Yes |
| HA x 2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4 | Yes |
| T2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4,6,8 | Yes |
| U1 | 10.7MHz to 200MHz | Both | Both | -55 to +125°C | 2 | Yes |
| U1 x 2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4 | Yes |
| U1 x 3 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 6 | Yes |
