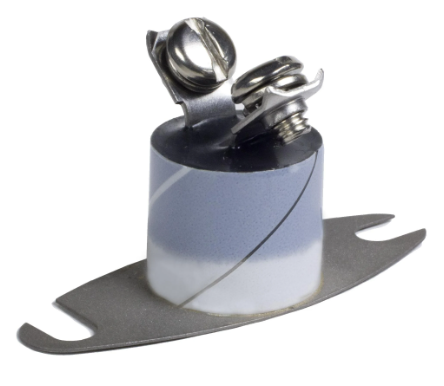

5011系列恒溫器是專為滿足苛刻的沖擊和振動要求而設計的產品，符合RoHS標準，具有積極的快速動作，為單極/單拋的密封裝置。通常具有一個接地的外殼結構，并提供額外的終端，可在設備與地面絕緣時，將正極接地引線或用作隔離裝置。
5011系列恒溫器可用于溫度警告或保護應用。校準已在出廠時設置，并且設計為防篡改。
相關型號：
C11JG160A-140A
C11JG190A-170B
C11JG215A-190Y
C11JG240A-210Y
011JG155B-140B
011JG180A-155Y
011JG200A-175Y
011JG085A-065Y
特性：
- 采用密封玻璃密封技術，確保產品密封性和可靠性。
- 適用于理想的表面和浸入式傳感。
- 提供多種安裝方式和終端類型。
- 可提供案例隔離和案例接地版本。
應用領域：
- 用于印刷電路板的保護。
- 用于空氣或水冷發動機和變速箱等領域。
- 用于流體傳感應用。
5011系列恒溫器在經受沖擊和振動要求較高的環境中表現出色，適用于多種應用場景，保障設備在不同條件下的穩定運行。
| Contact Ratings | Cycles Voltage Amps Case Type 100,000 120 3 (resistive) Ground / Insolated case 100,000 120 2 (inductive) Isolated case 100,000 32 3 (resistive) Grounded case |
| Contact Operations | Either close on rise(make)or open on rise (break),SPST (Single Pole,Single Throw) |
| 0perating Temperature | +140F to 480F(+60℃ to 249℃) |
| Temperature Tolerance | Standard of ±5°F with nominal operating temperature settings in 5°F increments |
| Long Term Exposure Limit | 65F to 625°F(-53.8℃ to 329.4℃ Note:Please consult the factory if lead wire/terminal exposure temperatures are expected to exceed 220°E Refer to inside notes B&C |
| Dielectric Strength | 1000 Vrms 60Hz(isolated case)terminals to case (contacts open |
| Insulated Resistance | 50 meghoms at 500 Vdc |
| Thermal Shock | MIL-STD-202,Method 107 Test Condition B |
| Materials | Cold-rolled steel,nickel plated enclosure with a glass seal.Applications up to 300°F have a Mylar@ sleeve with an epoxy fill,those above 300°F have a Nomex@sleeve and a high temperature epoxy fill *Exposure limited should be kept to within 100°F of the operating temperature.Consult factory if canditians require otherwise. |

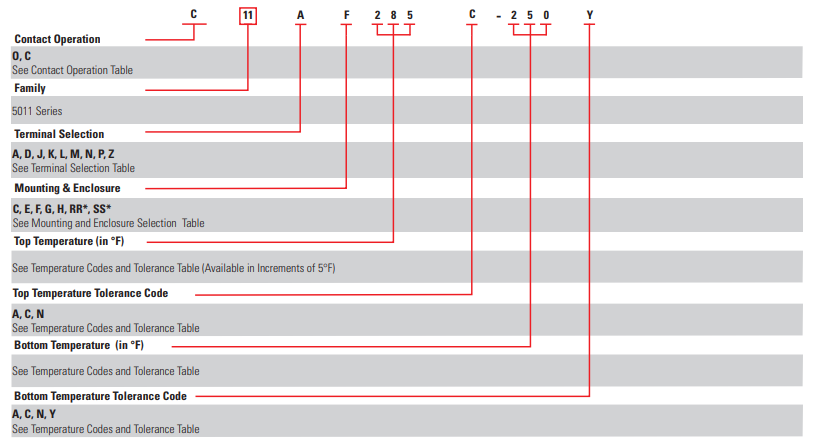

訂購指南：
