- 產品詳情

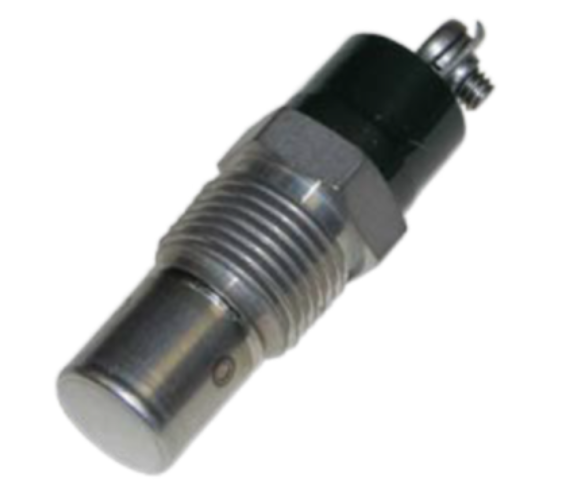

5020系列是設計用于高抗振性應用的單擲式速動密封溫度控制器。其速動盤位于探頭的頂端，確?？焖俣鴾?zhǔn)確地響應溫度變化。采用焊接結構和接地外殼的密封恒溫器符合MIL-STD-202方法107測試條件B的熱沖擊規范，并能承受高達1500 PSI的壓力暴露限制。
主要特點包括：
- 1/2英寸圓盤按鈕樣式設計
- 采用密封玻璃密封，僅接地外殼
- 適用于浸入式傳感器的理想選擇
規格參數：
| Contact Ratings | Cycles | Voltage | Amps | Case Type |
| 100,000 | 12 or 32 VDC | 3 (Resistive) | Grounded Case | |
| Contact Operations | Either close on rise (make) or open on rise (break), SPST (Single Pole, Single Throw) | |||
| Operating Temperature | +35oF to 480oF (+1.67oC to 249oC) | |||
| Dielectric Strength | 500 VAC, 60Hz (grounded case) terminals to case across open contacts | |||
| Vibration | .06DA, 10-55 Hz, 20G 20-2000 Hz | |||
| Shock | .75G 6ms duration (sawtooth) | |||
| Military Specifications | 5020-13 conforms to MIL-S-12285/1, thermal shock per MIL-STD-202, Method 107, Condition B | |||
| Materials | Stainless steel body and tube, compression glass seal, Mylar sleeve, epoxy fill potting, stainless or plated steel terminals, fine | |||
| silver contacts | ||||
應用：
液壓系統
脫脂劑
工業和便攜式壓縮機
制冷系統
發電機組
化學浴
發動機冷卻液
機油和變速箱保護

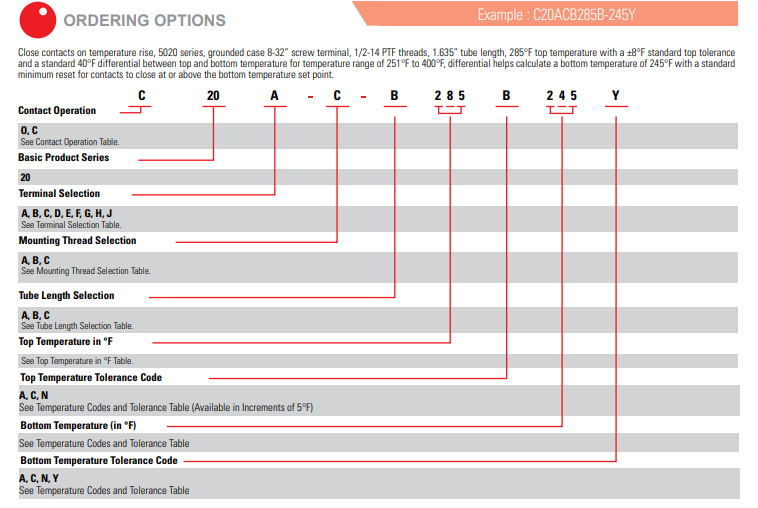

訂購指南：
