特點：
平面安裝
寬輸入范圍
電壓監控
規格參數：
| Parame- ters | Specifications | ||||||||||
| Input vol- tage Vin (pins 1&2 | [5]:absolute maximum 15Vdc,recommended:from 3.6 to 10Vdc [12]:absolute maximum 28Vdc,recommended:from 6 to 15Vdc [24]:absolute maximum 28Vdc,recommended:from 13.5 to 26Vdc | ||||||||||
| Input current (room tem- perature | [5] | [12] | [24] | ||||||||
| Vin | 3.6Vdc 10.0Vdc | 5.0Vdc | 10.0Vdc | 6.0Vdc | 12.0Vdc | 15.0Vdc | 13.5Vdc | 24.0Vdc | 26.0Vdc | ||
| Inibit. Mode | <40μA | <60μA | <150μA | <70μA | <200μA | <300μA | <240μA | <600μA | <650μA | ||
| HV setting = 0V | <6mA | <5mA | <5mA | <2mA | <2.5mA | <3mA | <5mA | <6mA | <6mA | ||
| HV setting= 2.5Vdc no load | <110mA | <90mA | <55mA | <70mA | <50mA | <40mA | <55mA | <40mA | <40mA | ||
| HV setting= 2.5Vdc, full load | <560mA | <440mA | <220mA | <350mA | <180mA | <150mA | <160mA | <95mA | <90mA | ||
| HV output Vout (pin 9) | Programmable voltage:referto the Selection Guide for voltage ranges | ||||||||||
| Polarity | Fixed positiveor negative | ||||||||||
| HV setting (pins 3,4) | Via an external voltage source Oto+2.5Vdc. An external potentiometer,minimum resistance 2k,can be used assosiated with the reference voltage (pin5). The input impedance of the HV setting is 1M. Accuracy:+/-0.2%at ratedoutput voltage. | ||||||||||
| Max.output current lout | Refer to the Selection Guide | ||||||||||
| Load voltage regulation | ±0.01%for no load to full load | ||||||||||
| Line voltage regulation | ±0.01%overrecommended input voltage range | ||||||||||
| Residual ripple | 0.002% | ||||||||||
| Temperature coefficient | <50ppm/℃ | ||||||||||
| Output HVmonitoring (pin 6) | 0/+3,000V,output impedance=1kQ Accuracy:+/-0.2%at rated output voltage | ||||||||||
| Output current monitoring (pin 7) | 0/+3,000V,output impedance=10 Accuracy:+/-1%after compensation (see note) | ||||||||||
| Output reference voltage (pin 5) | Refer to the Selection Guide | ||||||||||
| Inhibition mode (pin 8) | ±0.01%for no load to full load | ||||||||||
| Operating case temperature | -40°℃to+80℃ | ||||||||||
| Storagetemperature | -40℃to+80℃ | ||||||||||
| Safeguards | ·Arc and short circuit protection ·Soft start feature:the start is guaranted withno overshoot ·Protectedagainst reverse Vin(-30Vdc max.) ·HV | ||||||||||

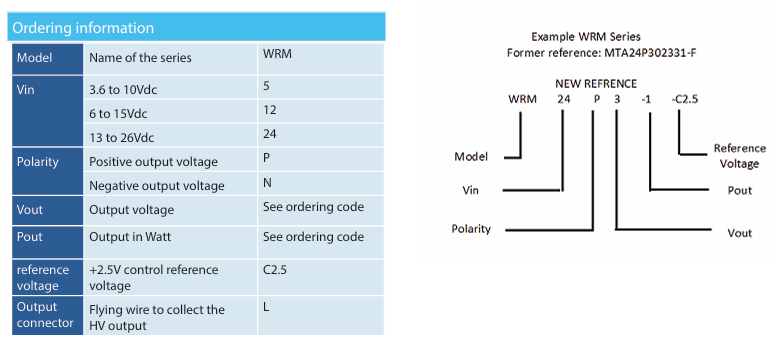

訂購指導：
